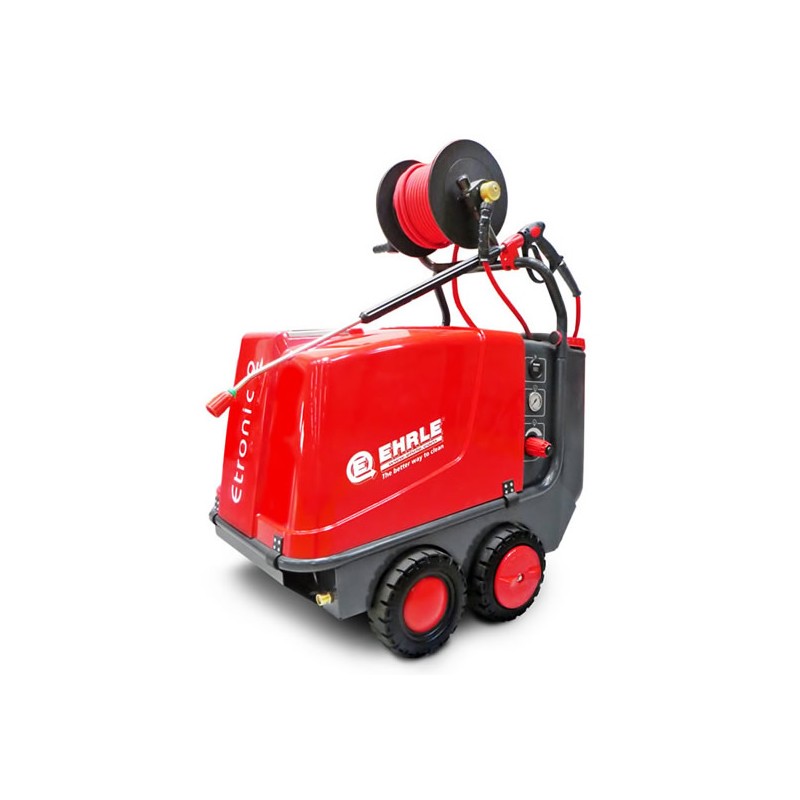

HD823 UK Premium

Mobile hot water high pressure cleaner, designed for continuous professional use, oil heated

Models

HD823 UK (Premium)

Standard Equipment

Premium

  • Etronic II controls
  • Hose reel
  • 20 m high pressure hose DN08 – 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Spray lance 900 mm c/w rotary nozzle
  • Water supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve


Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

  • Robust, corrosion-resistant, self-supporting device chassis
  • Impact-Resistant device cover made of ABS
  • Triplex piston pump with brass pump head, high-performance ceramic piston, stainless steel valves
  • Leakage return
  • Etronic II controls: Start-stop system with switch-off delay, total-switch-off after 20 min, OPH counter with service information, low-water cut-off, low-fuel cut-off, optical flame monitoring with photoelectric cell and fault indicator light, steam-stage
  • 2-motors system (independent of the direction of rotation) separately for high pressure pump and heating
  • Unloader safety valve c/w infinitely variable pressure and quantity regulation
  • 4 large rubber wheels for rough terrain with a patented wheel brake 2-way
  • Storage possibility for all accessories
  • Integrated diesel tank 25 l
  • Integrated detergent tank 20 l
  • Robust rotary ON/OFF switch
  • 7.5 m connection cable
  • Removable ergonomic drawbar

Data sheet

Weight
167kg
Voltage (V)
1 / 240 V / 50 Hz
Order N°
496004
Operating pressure
30-125 bar / 3-12.5 MPa
Max. Pressure
140 bar / 14 MPa
Nozzle size
050
Pump Speed
1400 rpm
Connected load
3.3 kW / 13 A
Electrical Protection
13 A slow-blowing
Dimensions (L x W x H)
1070 x 735 x 1310 mm
Hot water capacity
30-98 °C (150 °C)
Discharge capacity
300–720 l/h
