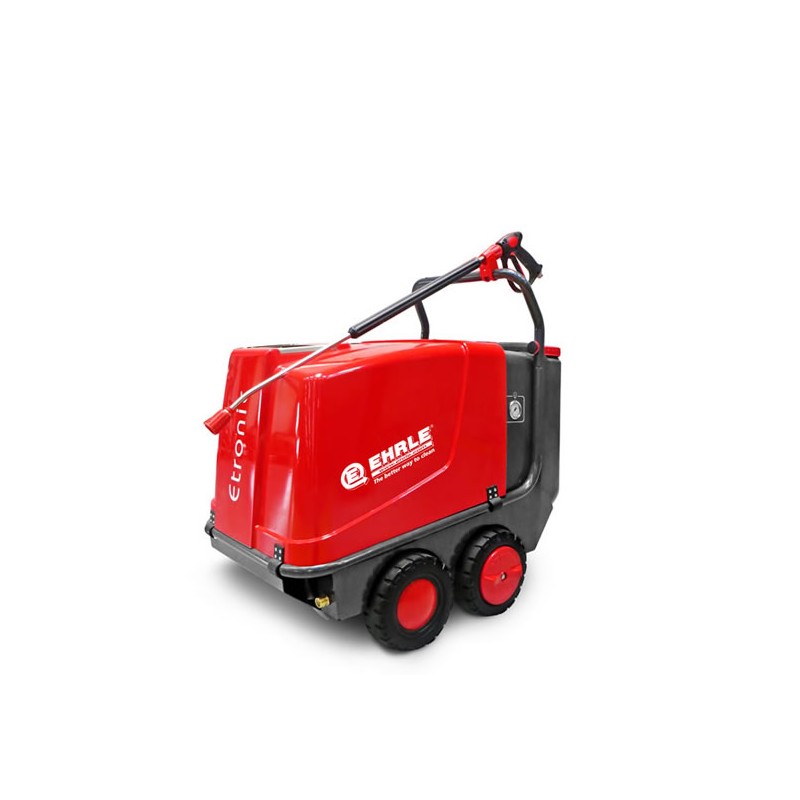

HD640 Standard

Model

HD640 (Standard)

Standard Equipment

Standard

  • Etronic I - Controls
  • 10 m high pressure hose - DN08 - 315 bar
  • Trigger gun with swivel
  • Spray lance 900 mm c/w nozzle protection
  • Stainless steel jet nozzle 25°
  • Water-supply separation acc. water reg.
  • Chemical supply in high pressure jet c/w metering valve



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

  • Robust, corrosion-resistant, self-supporting device chassis
  • Impact-resistant device cover made of ABS
  • Triplex piston pump with brass pump head, nickel-plated, high-performance ceramic piston, stainless steel valves
  • Leakage return
  • Etronic I controls: Start-stop system with switch-off delay, total-switch-off after 20 min
  • 2-motors system (independent of the direction of rotation) separately for high pressure pump and heating
  • Unloader safety valve c/w infinitely variable pressure and quantity regulation
  • 4 large rubber wheels for rough terrain, with a patented wheel brake 2-way
  • Storage possibility for all accessories
  • Integrated Diesel tank 25 l
  • Integrated detergent tank 20 l
  • Rotary ON/OFF switch, robust and lockable
  • 7.5 m connection cable
  • Removable ergonomic drawbar

Data sheet

Weight
157 kg
Voltage (V)
3 / 400-415 V / 50 Hz
Order N°
412001
Operating pressure
30-180 bar / 3-18 MPa
Max. Pressure
200 bar / 20 MPa
Water Output
300 - 600 l/h
Nozzle size
034
Pump Speed
1400 rpm
Connected load
4.6 kW / 8.0 A
Electrical Protection
3 x 16 A slow-blowing
Dimensions (L x W x H)
1070 x 735 x 1020 mm
Hot water capacity
30-98 °C
