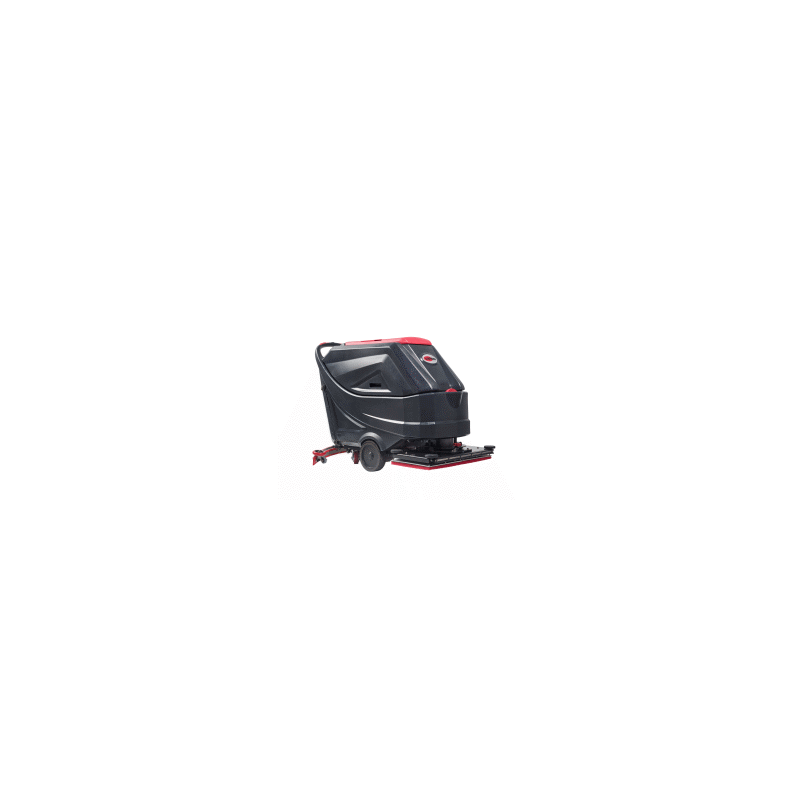

AS7190TO-EU SCRUBBER ORB 28 IN(50000571)

Product no: 50000571

A new generation of high-performance floorcare



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

When hard flooring needs a bit of extra effort to get the best results, the Viper AS series is ready to make the difference, with dual-brush or orbital-deck models for applications ranging from heavy-duty scrubbing to surface-stripping.

Easy operation, high tank capacity, and the resource-efficiency needed to get the job done quickly and effectively, make the intuitive AS models an ideal match for cleaning programs that need consistent results across medium- and large-sized spaces.

  • Adjustable brush-pressure settings make it easy to handle all kinds and levels of dirt
  • Solution-flow management ensures optimal control of detergent dosage
  • Eco and Silent modes make it easy to clean over longer periods or in sound-sensitive areas
  • Easy access to solution tank, battery, and working components, with tool-free squeegee-blade removal
  • Convenient controls and LCD display for fast, effective training and operation

Accessories

Pad Boost

PAD-RED-14X28-5/CS 997001 (Available for this model, but not included in the purchase)

Special Pad

PAD-MAROON SPP PLUS-14X28-5/CS 56394155 (Available for this model, but not included in the purchase)

Squeegee Blade

BLADE FRONT RUBBER 940MM 37IN VS1463

        BLADE REAR RUBBER 940MM 37IN VS14636

BLADE SQUEEGEE FRONT LINATEX 940MM 37 VR16002L

BLADE SQUEEGEE FRONT PU 940MM 37 VR16002 (Available for this model, but not included in the purchase)

        BLADE SQUEEGEE REAR LINATEX 940MM 37 VR16003L (Available for this model, but not included in the purchase)

BLADE SQUEEGEE REAR PU 940MM 37 VR16003 (Available for this model, but not included in the purchase)

Battery

BATT. 6V-175AH WET TUBULAR MONOBLOC 80563211 (Mountable)

BATT. 6V-180AH GEL MONOBLOC 80564000 (Mountable)

On-Board Charger

CHARGER ON-BOARD KIT 25A EU-UK VS14716 (Mountable)

External Charger

CHARGER HF 24V 13A SB120R 80532413 (Available for this model, but not included in the purchase)

CHARGER HF 24V 30A SB120R 80542430 (Available for this model, but not included in the purchase)

CHARGER HF 24V/20A SB 120R 80522420 (Available for this model, but not included in the purchase)

Other

TRAY DEBRIS KIT VS14744

Data sheet

Solution tank
85
Recovery tank
90
Shipping weight
215 Kg
Cleaning width
710mm
Voltage (V)
24V
Brush pressure
42 / 54 / 65 Kg
Battery compartment size (L x W x H) (mm)
620 x 385 x 390 mm
Gross weight (gvw) (kg)
360 Kg
Sound pressure level (dB(A))
69 ± 3 dB (A)
Pad/Brush Size
355x710 mm
Solution flow
(0.6/1.1/1.9/2.5) Liters (0.16/0.29/0.5/0.66) Gallons
Min. aisle turn (cm)
160cm
Packaging dimensions
1660 x 910 x 1200 mm
Length
1490 mm
Width with squeegee
950mm
Width without squeeegee
750mm
Machine speed
0 – 3.2 Km / 0 – 2.0 Miles per hour
Cleaning productivity (max.)
2272 m2/h
Sound level - silent mode
65 ± 3 dB (A)
Height
1020 mm
