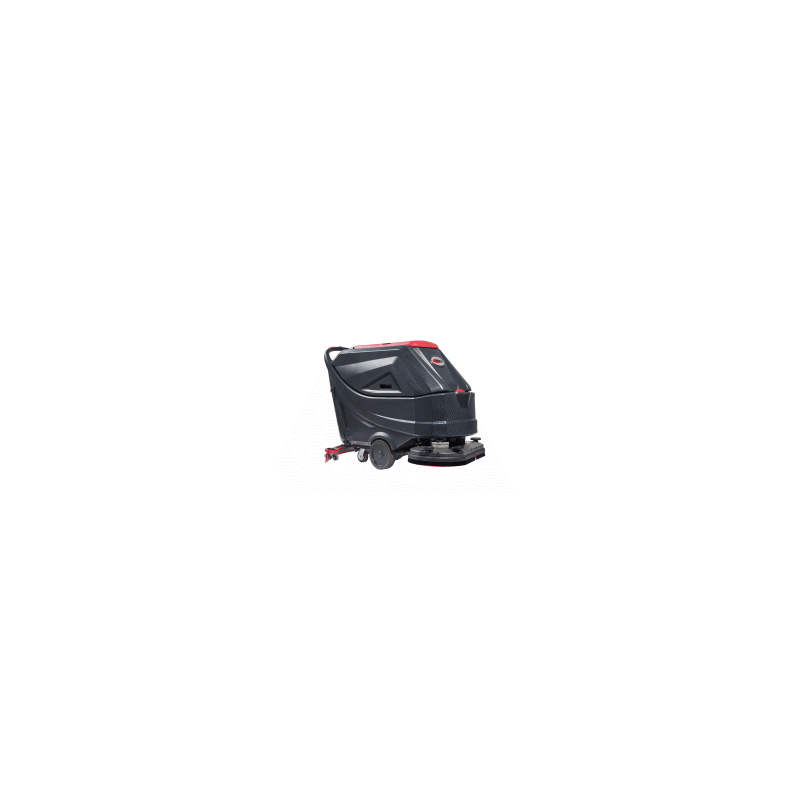

AS6690T G180 OBC(CM50000569-01)

Product no: CM50000569-01

A new generation of high-performance floorcare



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

When hard flooring needs a bit of extra effort to get the best results, the Viper AS series is ready to make the difference, with dual-brush or orbital-deck models for applications ranging from heavy-duty scrubbing to surface-stripping.

Easy operation, high tank capacity, and the resource-efficiency needed to get the job done quickly and effectively, make the intuitive AS models an ideal match for cleaning programs that need consistent results across medium- and large-sized spaces.

  • Adjustable brush-pressure settings make it easy to handle all kinds and levels of dirt
  • Solution-flow management ensures optimal control of detergent dosage
  • Eco and Silent modes make it easy to clean over longer periods or in sound-sensitive areas
  • Easy access to solution tank, battery, and working components, with tool-free squeegee-blade removal
  • Convenient controls and LCD display for fast, effective training and operation

Accessories

Pad Holder

PAD HOLDER FLAT 355MM 14 VF83207

Disc Brush 330 mm

BRUSH DISC 330MM 13 PPL VF83127

BRUSH DISC GRIT 180 GRAY 13IN VS14333 (Available for this model, but not included in the purchase)

Squeegee Blade

BLADE FRONT LINATEX 830MM 33IN VS14639 (Available for this model, but not included in the purchase)

BLADE FRONT PU 830MM 33IN VS14632 (Available for this model, but not included in the purchase)

BLADE FRONT RUBBER 830MM 33IN VS14637

BLADE REAR LINATEX 830MM 33IN VS14640 (Available for this model, but not included in the purchase)

BLADE REAR PU 830MM 33IN VS14633 (Available for this model, but not included in the purchase)

BLADE REAR RUBBER 830MM 33IN VS14638

Battery

BATT. 6V-175AH WET TUBULAR MONOBLOC 80563211 (Mountable)

BATT. 6V-180AH GEL MONOBLOC 80564000 (Available for this model, but not included in the purchase)

On-Board Charger

CHARGER ON-BOARD KIT 25A EU-UK VS14716 (Available for this model, but not included in the purchase)

External Charger

CHARGER HF 24V 13A SB120R 80532413 (Available for this model, but not included in the purchase)

CHARGER HF 24V 30A SB120R 80542430 (Available for this model, but not included in the purchase)

CHARGER HF 24V/20A SB 120R 80522420 (Available for this model, but not included in the purchase)

Flap and Skirt

SKIRT BRISTLE DECK -26 KIT VS14328

Other

TRAY DEBRIS KIT VS14744

Data sheet

Solution tank
85
Recovery tank
90
Shipping weight
202 Kg
Voltage (V)
24 V
Brush pressure
32 Kg
Battery compartment size (L x W x H) (mm)
620 x 385 x 390 mm
Gross weight (gvw) (kg)
347 Kg
Sound pressure level (dB(A))
69 ± 3
Pad/Brush Size
330 mm x 2
Solution flow
0.9/1.5/2.2/3 Liters
Min. aisle turn (cm)
155 cm
Packaging dimensions
1620 x 810 x 1200 mm
Length
1490 mm
Width with squeegee
830 mm
Width without squeeegee
730 mm
Height
1020 mm
Sound level - silent mode
65 ± 3
Machine speed
0 - 4.0 Km
